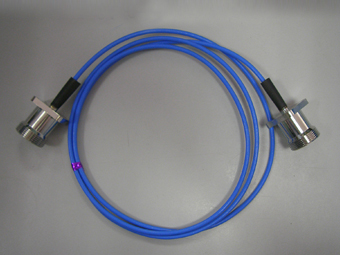

RG401 7/16M-7/16F

View Larger Image

Product Brief :

Description:	Cable accesories
Type:	RG401 7/16M-7/16F
Note:	RG401 semi rigid cable with 7/16 Female(Flange)

Impedance		50
Contact resistance (M)	Inner conductor	Depending on connectors chosen
	outer conducto	Depending on connectors chosen
Insulation resistance (M)		Depending on connectors chosen
Withstanding voltage AC(V/min)		>2500V
VSWR		Straight	(0~2.2GHz)<1.10
			(0~3GHz) <1.15
Insertion loss (dB)		<0.1+cable loss at 3GHz
PIM3 @2x20W		<-153dBc
Water-proof		IP67
Durability		500 Cycles
