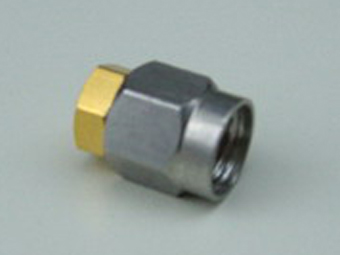

SMA-H-J402

View Larger Image

Product Brief :

Description:	RF Connector
Type:	SMA-H-J402
Note:	SMA for RG402 cable

Specification:

Impedance		50
Contact resistance	Inner conductor	<3m
	Outer conductor	<2m
Insulation resistance (M)		>5000M
Withstanding voltage AC(V/min)		>1000V
VSWR		(0~3GHz) <1.10
Insertion loss (dB)		<0.1 at 3GHz
Water-proof		IP67
Durability		500 Cycles
