Warning: session_start(): Cannot start session when headers already sent in /home/rfcables/public_html/product_display.php on line 3 RG174 Coaxial Cable
RG174 Coaxial Cable has extremely high usage to be an GPSAntenna Cable, WLAN Antenna Cable, GSM Antenna Cable with so many RF Connectors include MMCX Connector, MCX Connector, SMA Connector, SMB Connector and others.

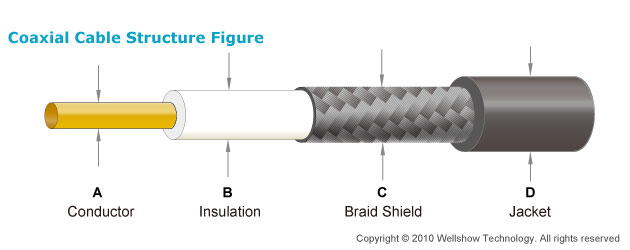

Cable Construction
Conductor (A)
Insulation (B)
Shield (C)
Jacket (D)
Diameter
0.48 mm
1.55 mm
2.70 mm
Material
Copper Strand
XLPE
Tinned Copper Wire
Coverage: 95 %
PVC
Specification
Impedance: 50 Ω
Capacitance: 100 pF/M
Conductor: Copper Strand, 26AWG(7/0.16mm)
Shield Coverage: 95%
Minimum Bend Radius: 10.5 mm
