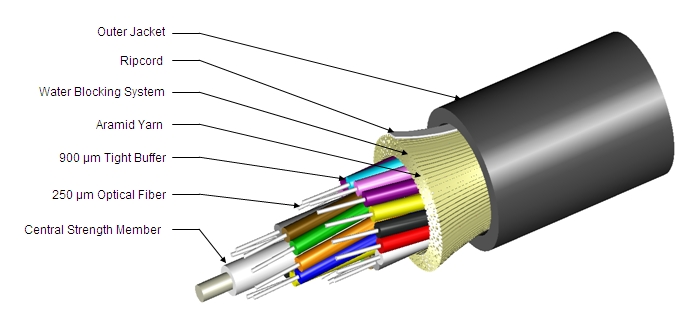

CommScope® Indoor/Outdoor Tight Buffered Fiber-Optic Cable

Indoor/Outdoor Plenum Distribution Cable, 2 fiber single-unit

The indoor/outdoor distribution cable provides network performance for the applications of today and tomorrow that can be used in non-traditional building entrance facilities.

This cable has an NEC OFNP Flame safety rating combined with ARID-CORE® water blocking technology which makes the cable suitable for installations in riser or plenum environments and wet locations such as ducts between buildings, installation in conduits that are installed in the buildings slab, which are considered "wet" going into a "plenum" space. This cable is available in TeraSPEED® single-mode, LazrSPEED® 50 micron or OptiSPEED® 62.5 micron multimode fiber

All-dielectric construction eliminates the need for bonding and grounding
Black, UV stabilized jacket is resistant to chemical, moisture, abrasion and sunlight and does not require additional protection in most installations
Utilizes ARID-CORE® water blocking technology which makes the cable suitable for the outside plant environment, with gel-free cable access
Meets requirements for tight buffered constructions and suitable of installation in true OSP environmental conditions
Single-unit

General Specifications
Cable Type	Distribution
Construction Type	Non-armored

Construction Materials
Fiber Type Solution	LazrSPEED® 550, 50 μm multimode fiber
Total Fiber Quantity	2
Fiber Type	LazrSPEED® 550, 50 μm multimode fiber
Fiber Type, quantity	2
Jacket Color	Black
Jacket UV Resistance	UV stabilized

Dimensions
Cable Weight	10.8 lb/kft \| 16.0 kg/km
Diameter Over Jacket	4.20 mm \| 0.17 in

Physical Specifications
Minimum Bend Radius, loaded	8.5 cm \| 3.3 in
Minimum Bend Radius, unloaded	4.2 cm \| 1.7 in
Tensile Load, long term, maximum	67 lbf \| 300 N
Tensile Load, short term, maximum	225 lbf \| 1001 N
Vertical Rise, maximum	500.0 m \| 1640.4 ft

Flame Test Specifications
Flame Test Listing	NEC OFNP (ETL) and c(ETL)
Flame Test Method	NFPA-262

Environmental Specifications
Environmental Space	Plenum
Installation Temperature	-30 °C to +70 °C (-22 °F to +158 °F)
Operating Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature	-40 °C to +75 °C (-40 °F to +167 °F)

Mechanical Test Specifications
Compression	126 lb/in \| 22 N/mm
Compression Test Method	FOTP-41 \| IEC 60794-1-2, Section 7
Flex	100 cycles
Flex Test Method	IEC 60794-1-2, Section 10 \| FOTP-104
Impact	4.34 ft lb \| 5.88 N-m
Impact Test Method	FOTP-25 \| IEC 60794-1-2, Section 8
Strain	See long term and short term tensile loads
Strain Test Method	FOTP-33 \| IEC 60794-1-2, Section 5
Twist	10 cycles
Twist Test Method	FOTP-85 \| IEC 60794-1-2, Section 11
Water Penentration	24 h
Water Penentration Test Method	FOTP-82 \| IEC 60794-1-2, Section 24

Environmental Test Specifications
Heat Age	-40 °C to +85 °C (-40 °F to +185 °F)
Heat Age Test Method	Not applicable
Low High Bend	-40 °C to +70 °C (-40 °F to +158 °F)
Low High Bend Test Method	FOTP-28 \| IEC 60794-1-2, Section 28
Temperature Cycle	-40 °C to +70 °C (-40 °F to +158 °F)
Temperature Cycle Test Method	FOTP-3 \| IEC 60794-1-2, Section 22

Qualification Specifications
Cable Qualification Standards	ANSI/ICEA S-104-696-2001 \| Telcordia GR-20-CORE Issue 3 (water penetration) \| Telcordia GR-409-CORE Issue 2

Regulatory Compliance/Certifications

Agency	Classification
RoHS 2002/95/EC	Compliant
ISO 9001:2008	Compliant
